Products

HPLC Columns

TSKgel GMPW

TSKgel GMPW are mixed bed scouting columns for water-soluble linear polymers. The pore volume can be accessed by polymers ranging in molecular weight from 500 to 8 x 106  Da.



Mixed bed columns contain a mixture of different pore sizes that have an extended linear calibration range, suitable for samples with a broad molar mass distribution as well as unknown samples. By quickly categorizing the molecular weight profile of an unknown sample, the column enables a fast selection of the best TSKgel PW column for routine analysis.



Stable from pH 2 to 12, TSKgel GMPW columns can be used in mobile phases of water or buffer (up to 20% methanol/80% aqueous) and can tolerate temperatures up to 80°C.




P/NDescriptionParticle Size Housing MaterialID (mm)Length (cm)Price ($)
08026TSKgel GMPW17Stainless Steel7.5301,729
08027TSKgel GMPW17Stainless Steel7.5602,812


Product Attributes

Base material: hydroxylated polymethacrylate
Particle size (mean): 17 µm
Pore size (mean): mixed pore sizes
Calibration range: 1,000 - 8.0 × 10​Da (polyethylene glycols and oxides)

Polystyrene Calibration Curves


Columns: A. G2000PW B. G2500PW
C. G3000PW D. G4000PW
E. G5000PW F. G6000PW
G. GMPW
all 7.5 mm ID × 60 cm
Mobile phase: distilled H2O
Flow rate: 1.0 mL/min
Detection: Rl

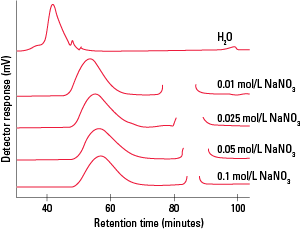

Effect of Ionic Strength on the Elution of Anionic Polymers




Column: TSKgel GMPW, 17 µm,
7.5 mm ID × 60 cm × 2
Mobile phase: H2O with 0.01 mol/L, 0.025 mol/L, 0.05 mol/L or 0.1 mol/L NaNO3
Flow rate: 0.5 mL/min
Detection: RI
Sample: 0.5 mL of 0.05-0.1% of the sodium salt of polyacrylic acid, an anionic polymer

For additional applications, please see our applications database.



Code #DescriptionLiterature Type
AO01 Gel Filtration Chromatography with TSKgel columns Application Overview
DS1020 TSKgel GMPW ProductsOperating Conditions and Specifications
IM01 TSKgel Column Instruction ManualInstruction Manual
LCAT01B TSKgel U/HPLC Columns 2019 Product Guide -- SEC, PW Series ColumnsProduct Catalog
SR024 Applications for High-Performance Gel Filtration Columns (TSKgel SW and TSKgel PW columns): Focus on BiopolymersSeparation Report
SR035 GFC Analysis of Water-Soluble Polymers with TSKgel PW ColumnsSeparation Report
P/NDescriptionParticle Size Housing MaterialID (mm)Length (cm)Price ($)
06762TSKgel G2500PW-GMPW Guard Column for 7.5 mm ID columns12Stainless Steel7.57.5627
