TSKgel SuperH1000

The TSKgel SuperH1000 column is packed with rigid, porous, polymer beads. It is for the non-aqueous separation of small molecules and oligomers less than 1,000 Da. The maximum operating temperature for the TSKgel SuperH1000 column is 140 °C. This column is shipped in THF, which can be exchanged for a wide variety of organic solvents.

This TSKgel SuperH1000 column is a high efficiency/high throughput version of the conventional TSKgel G1000Hhr column. Both column types are based on the same bead chemistry.

The volume of the 6 mm ID × 15 cm TSKgel SuperH1000 column is 3.4 times smaller than that of a conventional 7.8 mm ID × 30 cm column. As a result, peak volumes will be proportionally smaller on this column compared to a corresponding TSKgel Hhr column. Thus, your HPLC system may require optimization of components that can give rise to extra-column band broadening, such as connecting tubing, injector, injection volume, detector cell volume, and detector time constant.



P/NDescriptionParticle Size Housing MaterialID (mm)Length (cm)Price ($)
0017990TSKgel SuperH10003Stainless Steel6152,053


Product Attributes

Matrix: polystyrene-divinylbenzene
Particle size (mean): 3 µm
Pore size (mean): 1.5 nm
Exclusion limit: 1,000 ​Da

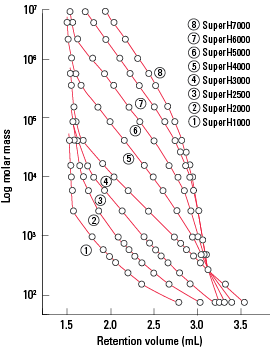

Polystyrene Calibration Curves


Columns: TSKgel SuperH columns,
6.0 mm ID × 15 cm
Mobile phase: THF
Flow rate: 0.6 mL/min
Detection: UV @ 254 nm
Temperature: 25 °C
Samples: polystyrene standards

Code #DescriptionLiterature Type
DS1209 TSKgel SuperH1000 ProductsOperating Conditions and Specifications
IM01 TSKgel Column Instruction ManualInstruction Manual
LCAT01D TSKgel U/HPLC Columns 2019 Product Guide -- SEC, H Series ColumnsProduct Catalog
SR088 High Speed and High Performance Semi-micro GPC Columns: TSKgel SuperH SeriesSeparation Report
P/NDescriptionParticle Size Housing MaterialID (mm)Length (cm)Price ($)
0018002TSKgel SuperH1000-SuperH4000 Guard Column for 6 mm ID columns3Stainless Steel4.63.5692
