TSKgel SuperHM-H

The TSKgel SuperHM-H mixed bed column is packed with rigid, multiple pore size, polymer beads that are blended to provide an extended linear calibration curve. Mixed bed columns are commonly used for unknown samples and for the analysis of polymers with a broad molecular weight distribution. This column provides high resolution of polymers with molecular weights of less than 4 × 10⁸ Da.

The maximum operating temperature for the TSKgel SuperHM-H column is 140 °C. This column is shipped in THF, which can be exchanged for a wide variety of organic solvents.

The TSKgel SuperHM-H column is a high efficiency/high throughput version of the conventional TSKgel GMHhr-H column. Both column types are based on the same bead chemistry.

The volume of the 6 mm ID × 15 cm TSKgel SuperHM-H column is 3.4 times smaller than that of a conventional 7.8 mm ID × 30 cm column. As a result, peak volumes will be proportionally smaller on this column compared to a corresponding TSKgel Hhr column. Thus, your HPLC system may require optimization of components that can give rise to extra-column band broadening, such as connecting tubing, injector, injection volume, detector cell volume, and detector time constant.

P/N	Description	Particle Size (µm)	Housing Material	ID (mm)	Length (cm)	Price ($)
0018001	TSKgel SuperHM-H	3	Stainless Steel	6	15	2,240	Inquire

Product Attributes

Matrix:	polystyrene-divinylbenzene
Particle size (mean):	3 µm
Pore size (mean):	mixed
Exclusion limit:	4.0 × 10⁸Da

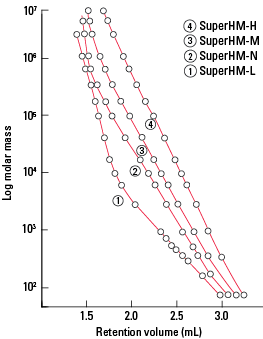

Polystyrene Calibration Curves

Columns:	TSKgel SuperH columns, 6.0 mm ID × 15 cm
Mobile phase:	THF
Flow rate:	0.6 mL/min
Detection:	UV @ 254 nm
Temperature:	25 °C
Samples:	polystyrene standards

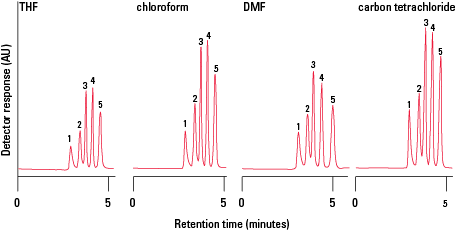

Separation of Standard Polystyrenes using a TSKgel SuperHM-H Column

Columns:	TSKgel SuperHM-H, 3 µm, 6 mm ID × 15 cm
Mobile phase:	THF, chloroform, DMF, carbon tetrachloride
Flow rate:	0.6 mL/min
Temperature:	25°C
Detection:	UV/VIS @ 254 nm
Samples:	1) polystyrene (2.89 × 10⁶Da) 2) polystyrene (4.22 × 10⁵Da) 3) polystyrene (1.07 × 10⁵ Da) 4) polystyrene (1.67 × 10⁴ Da) 5) polystyrene (2,800 Da)

For additional applications, please see our applications database.

Code #	Description	Literature Type
DS1234	TSKgel SuperHM-type Products	Operating Conditions and Specifications
IM01	TSKgel Column Instruction Manual	Instruction Manual
LCAT01D	TSKgel U/HPLC Columns 2019 Product Guide -- SEC, H Series Columns	Product Catalog
SR088	High Speed and High Performance Semi-micro GPC Columns: TSKgel SuperH Series	Separation Report

P/N	Description	Particle Size (µm)	Housing Material	ID (mm)	Length (cm)	Price ($)
0018003	TSKgel SuperH5000-7000;HM-L;-N;-M;-H Guard Column for 6 mm ID columns	3	Stainless Steel	4.6	3.5	693
