TSKgel GMHhr-H (S) HT2

The TSKgel GMHhr-H (S) HT2 ultra-high temperature mixed bed column is packed with rigid 13 µm polymer beads and is for the analysis of organic-soluble polymers at extremely elevated temperatures. This column is for applications up to 220 °C and is shipped in o-dichlorobenzene (ODCB), which can be exchanged for 1-chloronaphthalene and trichlorobenzene. The issue of shearing that occurs with the analysis of ultra-high molar mass polymers is overcome by the TSKgel GMHhr-H (S) HT2 column. The (S) is a reference to this shearing effect.

The TSKgel mixed bed columns are packed with particles of different pore sizes that are blended to provide an extended linear calibration curve. Mixed bed columns are used when a broad range of polymer molar masses is expected in the sample.



P/NDescriptionParticle Size Housing MaterialID (mm)Length (cm)Price ($)
0022889TSKgel GMHhr-H (S) HT213Stainless Steel7.8302,530


Product Attributes

Matrix: polystyrene-divinylbenzene
Particle size (mean): 13 µm
Pore size (mean): mixed
Exclusion limit: 4 × 10Da
Max. temperature: 220 °C

Polystyrene Calibration Curves


Columns: TSKgel GMHHR-H (20) HT2, 20 µm,
7.8 mm ID × 30 cm
TSKgel GMHHR-H (30) HT2, 30 µm,
7.8 mm ID × 30 cm

Mobile phase: ODCB with 0.05% BHT
Flow rate: 1.0 mL/min
Detection: RI
Temperature: 135 °C
Sample: polystyrene standards

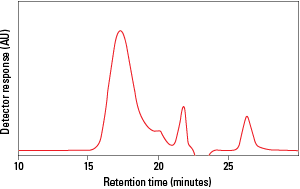

Polyphenylene Sulfide Analysis




Columns: TSKgel GMHHR-H (S) HT2, 13 µm,
7.8 mm ID × 30 cm × 2
Mobile phase: 1-chloronaphthalene
Flow rate: 1.0 mL/min
Detection: RI
Temperature: 220 °C
Injection vol.: 300 µL
Sample: PPS (polyphenylene sulfide), 2 g/L



For additional applications, please see our applications database.


Code #DescriptionLiterature Type
AN063 Polyphenylene Sulfide (PPS) Analysis Using the EcoSEC High Temperature GPC System Application Note
AN076 Characterization of a Conducting Polymer using the EcoSEC High Temperature GPC SystemApplication Note
DS1240 TSKgel HT and HT2 (High Temperature) ProductsOperating Conditions and Specifications
IM01 TSKgel Column Instruction ManualInstruction Manual
LCAT01D TSKgel U/HPLC Columns 2019 Product Guide -- SEC, H Series ColumnsProduct Catalog
P/NDescriptionParticle Size Housing MaterialID (mm)Length (cm)Price ($)
0022892TSKgel GMHhr-H (S) HT2 Guard column for 7.8 mm ID column13Stainless Steel7.57.5876
