TSKgel SuperMultiporeHZ-N

The TSKgel SuperMultiporeHZ-N column is packed with 3 µm cross-linked poly(styrene/divinylbenzene) particles containing a wide range of pore sizes. The multi-pore particle synthesis technology essentially creates a linear calibration curve within each particle, thereby greatly diminishing chromatograms with inflection points. This base material, coupled with the semi-micro column dimensions (4.6 mm ID × 15 cm), offers users high speed and low solvent consumption analyses with precise results.

The TSKgel SuperMultiporeHZ-N column is for the analysis of organic-soluble polymers with molecular weights from 300 to 50,000 Da, providing high speed and high resolution analysis with lowered solvent consumption. The columns are shipped in THF, which cannot be replaced for any other organic solvent.




P/NDescriptionParticle Size Housing MaterialID (mm)Length (cm)Price ($)
0021815TSKgel SuperMultiporeHZ-N3Stainless Steel4.6152,422



Product Attributes

Base Material: polystyrene-divinylbenzene
Particle size (mean): 3 µm*
Pore size (mean): 8 nm
Exclusion limit (PST/THF): 1.2 × 10Da
Separation range: 300 ~ 5.0 × 10Da
Theoretical plates/15cm column: 20,000

*Particle size distribution is monodisperse.

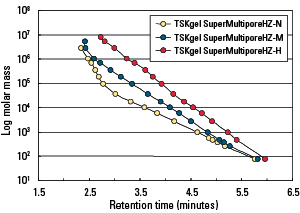

Polystyrene Calibration Curves


Columns: TSKgel SuperMultiporeHZ-N,
3 µm, 4.6 mm ID × 15 cm
TSKgel SuperMultiporeHZ-M,
4 µm, 4.6 mm ID × 15 cm
TSKgel SuperMultiporeHZ-H,
6 µm, 4.6 mm ID × 15 cm

Mobile phase: THF
Flow rate: 0.35 mL/min
Detection: UV @ 254 nm
Temperature: 25 °C
Samples: PStQuick polystyrene standards



Analysis of Standard Polystyrene




Column: A. TSKgel SuperMultiporeHZ-M, 4 μm, 4.6 mm ID × 15 cm × 2
B.TSKgel SuperMultiporeHZ-N, 3 μm, 4.6 mm ID × 15 cm × 2
Mobile phase: THF
Flow rate: 0.35 mL/min
Detection: UV @ 254 nm
Temperature: 25 °C
Injection vol.: 5 μL
Samples: Standard polystyrene oligomer (TSKgel standard polystyrene A-500) (5 g/L)




Analysis of Epoxy Resin




Column: A. TSKgel SuperMultiporeHZ-N, 3 μm, 4.6 mm ID × 15 cm × 2
B.TSKgel SuperMultiporeHZ-M, 4 μm, 4.6 mm ID × 15 cm × 2
C. TSKgel SuperMultiporeHZ-H, 6 μm, 4.6 mm ID × 15 cm × 2
Mobile phase: THF
Flow rate: 0.35 mL/min
Detection: UV @ 254 nm
Temperature: 25 °C
Injection vol.: 10 μL
Samples: epoxy resin (3 g/L)


For additional applications, please see our applications database.



Code #DescriptionLiterature Type
AN018 Semi-micro Columns for Size-Exclusion Chromatography in Organic Solvent Systems:TSKgel SuperMultiporeHZ Series Columns Application Note
AN029 Reduce Oligosaccharide Analysis Time with TSKgel SuperOligoPW Size Exclusion Chromatography Columns Packed with Three Micron ParticlesApplication Note
DS1229 TSKgel SuperMultiporeHZ ProductsOperating Conditions and Specifications
IM01 TSKgel Column Instruction ManualInstruction Manual
LCAT01D TSKgel U/HPLC Columns 2019 Product Guide -- SEC, H Series ColumnsProduct Catalog
PO20 TSKgel SuperMultiporeHZ ColumnsProduct Overview
SR105 Semi-micro for Size Exclusion Chromatography in Organic Solvent Systems: TSKgel SuperMultiporeHZ SeriesSeparation Report
TP108 Characteristics of newly developed, monodisperse multi-pore organic GPC columnsTechnical Presentation
TP114 A New Sophisticated GPC/SEC Instrument for High-Throughput and Semi-Micro SECTechnical Presentation
TP127 Characterization of Linear-type SEC Semi-micro Columns for Polymer AnalysisTechnical Presentation
TP128 High-throughput and robust SEC measurement using newly developed all-in-one SEC instrument for polymersTechnical Presentation
TP139 Reproducibility and Accuracy in Modern Size Exclusion ChromatographyTechnical Presentation
TP140 TSKgel High Resolution Size Exclusion Chromatography Column Technology for Organo-Soluble PolymersTechnical Presentation
P/NDescriptionParticle Size Housing MaterialID (mm)Length (cm)Price ($)
0021816TSKgel SuperMPHZ-N Guard3Stainless Steel4.621058
