HPLC Columns


The TSKgel SAX column is packed with 5 µm porous spherical polymer beads which are surface modified with a strong anion exchange group. They are used for the separation of isomerized sugars, alcohols, and low molecular weight organic acids.


P/NDescriptionParticle Size Housing MaterialID (mm)Length (cm)Price ($)
0007157TSKgel SAX5Stainless Steel6151,446

Product Attributes

Matrix: PS-DVB polymer
Particle size (mean): 5 µm
Pore size (mean): 6 nm
Functional group: trimethylamino
Counter ion: Cl-
pH stability: 1.0 - 14.0
Small ion capacity:

>1.0 eq/L

pKa: 12.5

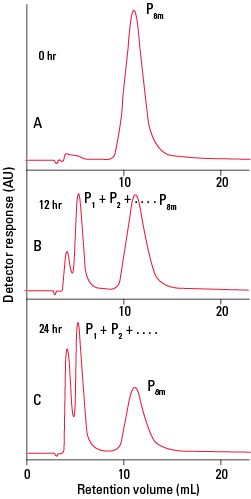

Hydrolysis Products of Cyclooctaphosphate



Columns: TSKgel SAX, 5 µm, 4 mm ID × 25 cm
Mobile phase: 0.4 mol/L KCl, 0.1% EDTA, pH 10.2
Sample: cyclooctaphosphate hydrolysis products
A. 0 hours
B. 12 hours
C. 24 hours


For additional applications, please see our applications database.


Code #DescriptionLiterature Type
DS1071 TSKgel SAX and SCX (Na+) ProductsOperating Conditions and Specifications
IM01 TSKgel Column Instruction ManualInstruction Manual
LCAT02A TSKgel U/HPLC Columns 2019 Product Guide -- AIEC ColumnsProduct Catalog
