TSKgel® SuperMultiporeHZ Columns

TSKgel® SuperMultiporeHZ Columns

TSKgel® SuperMultiporeHZ column line consists of three columns of 4.6 mm ID x 15 cm with particle sizes of 3, 4 and 6 µm. The semi-micro dimensions offer high speed analysis and low solvent consumption with precise results.

The particles in TSKgel® SuperMultiporeHZ columns are monodisperse in size and contain a broad range of pore sizes. The unique multi-pore technology creates an extended linear calibration curve within each particle, thereby greatly diminishing chromatograms with inflection points. Learn more about the multi-pore particle technology used in the TSKgel® SuperMultiporeHZ columns.

As shown in the figure below, each of these columns feature a distinctly different linear part of the calibration range.

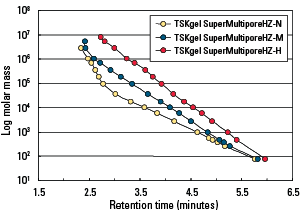

Calibration Curves of TSKgel® SuperMultiporeHZ column

Dimensions: 4.6 mm ID x 15 cm
Eluent:         THF
Flow rate:     0.35 mL/min
Temp.:          25°C
Detection:    UV @ 254 nm (UV-8020, 2.4 µL cell)
Sample:       PStQuick polystyrene standards



Base Material: PS-DVB
Particle Size (mean): 3 µm
Pore size (mean): 8 nm
Exclusion Limit
(PST/THF):		 120,000                           Visit the TSKgel® SuperMultiporeHZ-N product page.
Separation Range: 300~50,000 Da
Theoretical Plates
/ 15 cm Column:		 20,000



Base Material: PS-DVB
Particle Size (mean): 4 µm
Pore size (mean): 14 nm
Exclusion Limit
(PST/THF):		 2,000,000             Visit the TSKgel® SuperMultiporeHZ-M product page.
Separation Range: 500~1,000,000 Da
Theoretical Plates
/ 15 cm column:		 16,000



Base Material: PS-DVB
Particle Size (mean): 6 µm
Pore size (mean): ND
Exclusion Limit
(PST/THF):		 40,000,000             Visit the TSKgel® SuperMultiporeHZ-H product page.
Separation Range: 1,000~10,000,000 Da
Theoretical Plates
/ 15 cm column:		 11,000
